Automatic Doritos Making Machine

    Function: Corn tortilla, corn chips, doritos, chips
    Capacity:120-150kg/hour, 200-250kg/hour, 500-600kg/hour.
    Chips hape: round, triandle and so on.
    Model: AVN65, AVN70, AVN85.
    Category: tortilla machine, chips machine.
    Brand: AVAN MACHINERY
    Price: USD12000 to USD35000 PER SET.
    Supply Ability: 25 SETS PER MONTHLY
    Payment Method: T/T,L/C, Western Union, Money Gram, Paypal.
DETAILS


Automatic Doritos Making Machine

Doritos machine introduction.

The doritos snacks is popular in markets, it is also called tortilla, corn chips and so on. The doritos machine is designed to produce corn chips, this machine line adopts the corn maize powder, plant oil, salt and so on.

corn tortilla machines.jpg

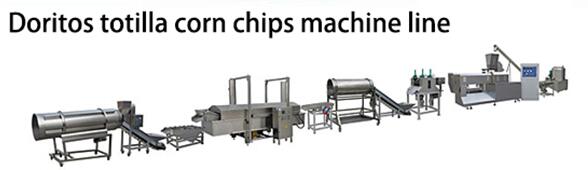

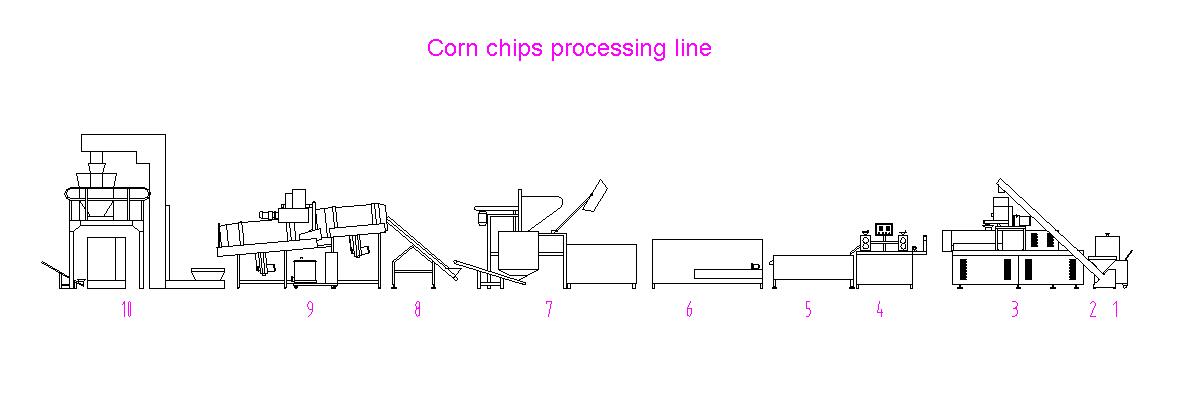

The doritos machine flow chart.

Mixer machine. Mix materials together. Like corn powder, water, salt, oil and so on.

Conveyor machine. Transport materials into extruder machine feeder.

Double screw extruder machine. Produce the doritos sheet.

Shape machine. Cut the doritos into triangle shape.

Fryer machine. Fry the doritos.

Flavoring machine.

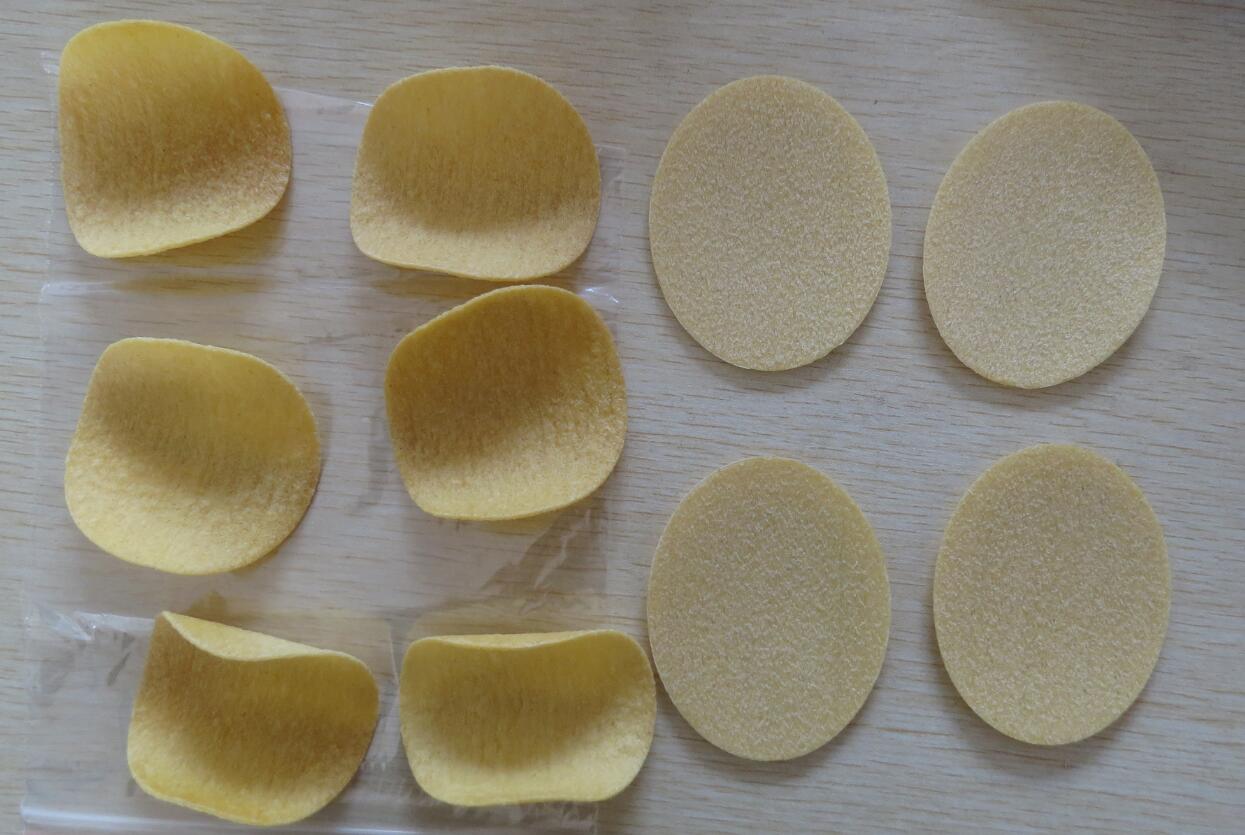

chips.jpg chips corn.jpg

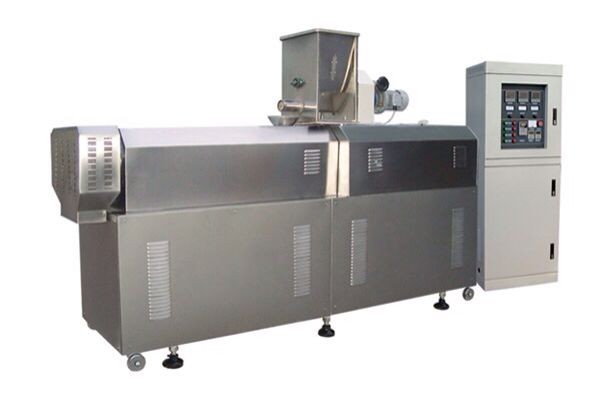

extruder machine 3.jpg

Machine specification.

Model
AVN65
AVN70 AVN75 AVN85 AVN95 AVN100 AVN120
Screw Dia'
65MM
70MM
72MM
80MM
92MM
100MM
120MM
Screw Length 1140MM
1410MM
2100MM
1850MM
2200MM
2500MM
2700MM
Number of screw 2
2
2
2
2
2
2
Main Motor
22KW
37KW 55KW 75KW 110KW 150KW 180KW
Heater
15KW
15KW 18KW
20KW
24KW
30KW
30KW
Capacity
150KG/H
200KG/H 300KG/H 500KG/H 1200KG/H 2000KG/H 4000KG/H
Weight
1200KG
1500KG
2100KG
2500KG
2800KG
3000KG
3200KG

Dimension

3500*1100*

1850MM

3500*1100*

2000MM

5000*1200*

2000MM

4300*1200*

2000MM

5000*1200*

3500MM

7100*1200*

3500MM

7800*1200*

3500MM

Machine advantage.

* Machines are made by stainless steel food grade.

* Doritos machine capacity is adjustable.

* Machine line could produce different shape corn chips, like triangle, heart, round and so on.

* Machines are easy to clean.

* Machines are easy to operate.

* Different materials could be used on chips, like rice powder, corn powder, wheat flour and so on.

* Extruder temperature is adjustable.

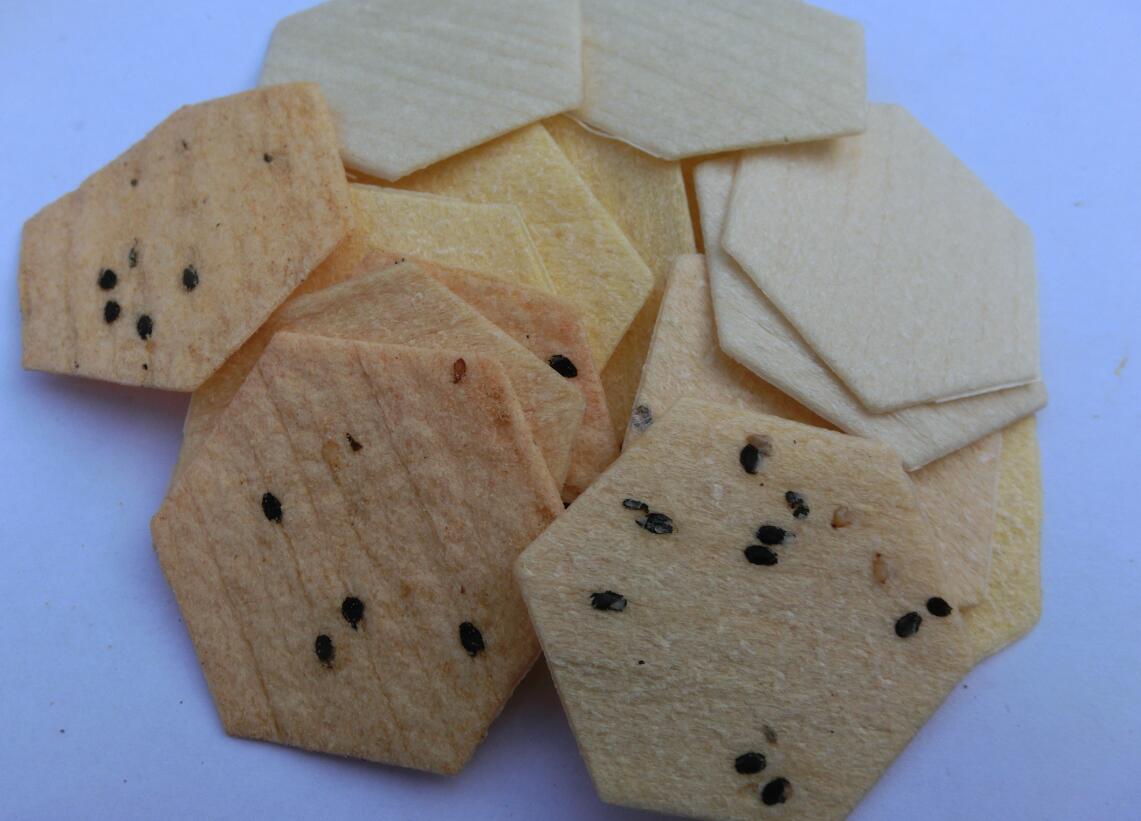

corn chips 4.jpg
