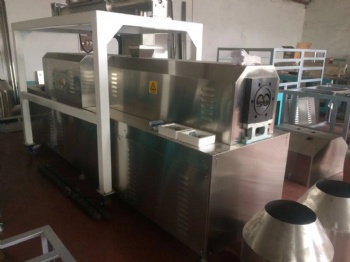

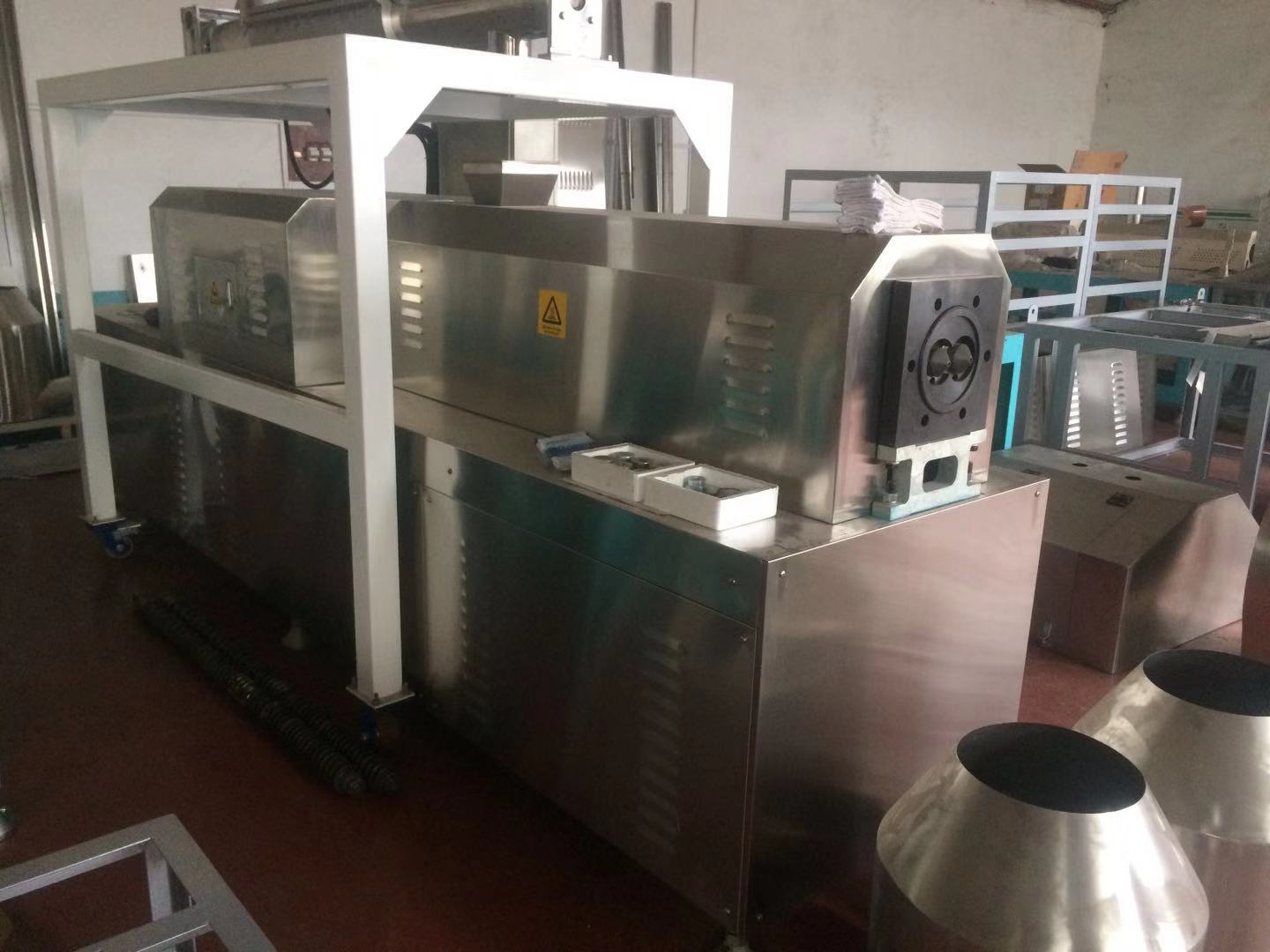

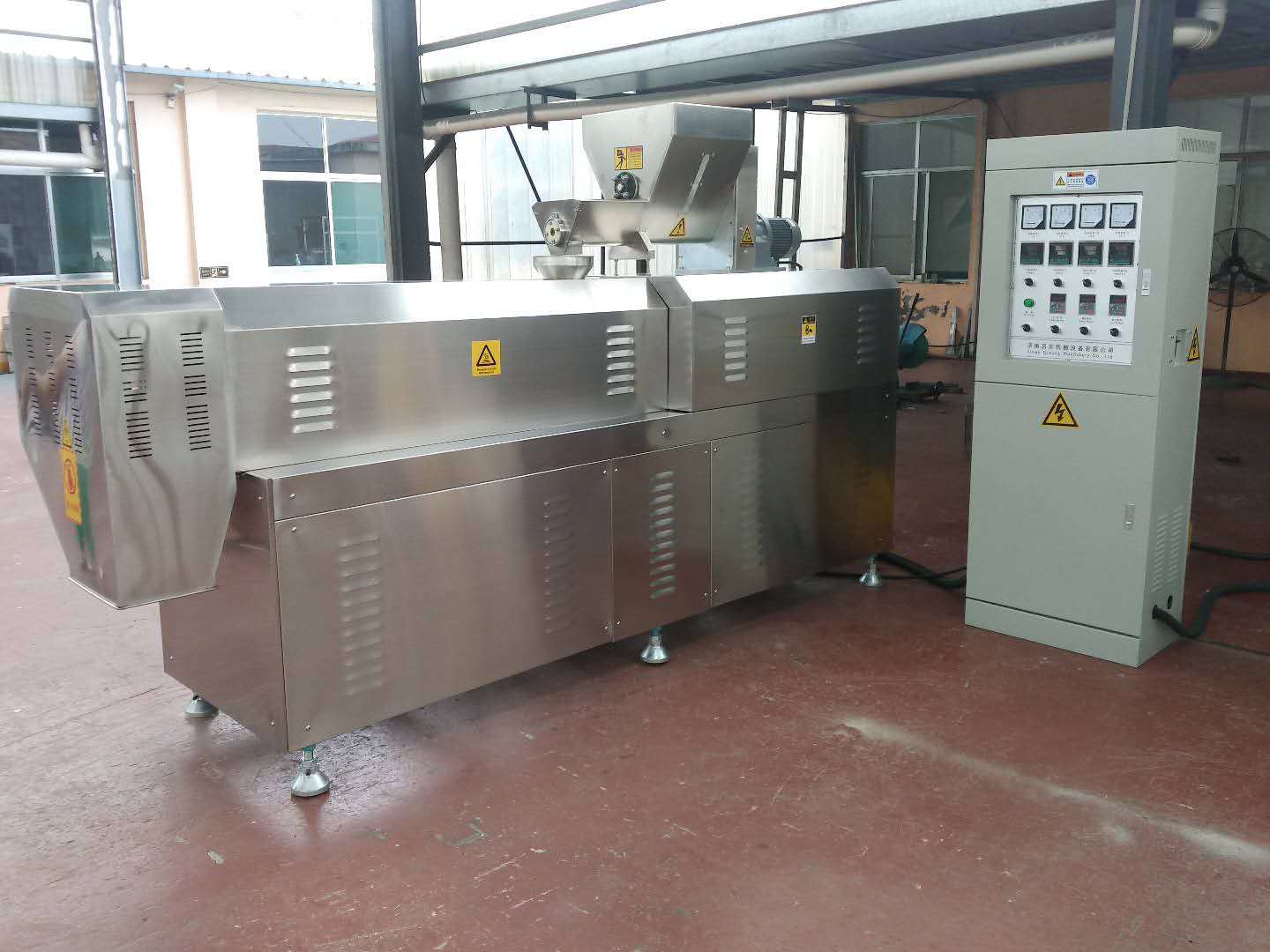

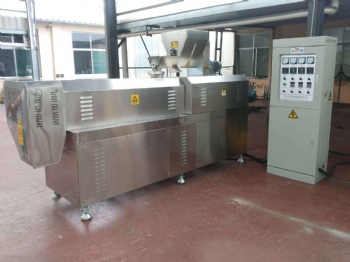

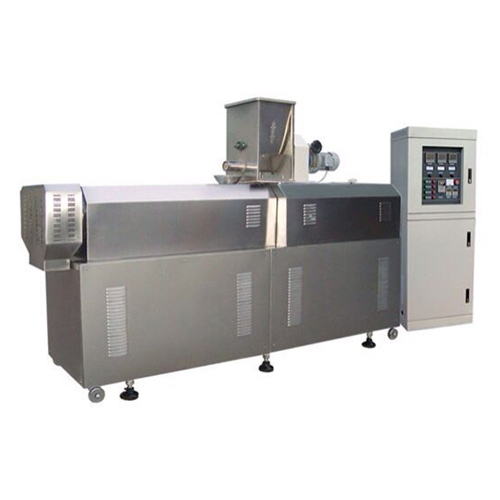

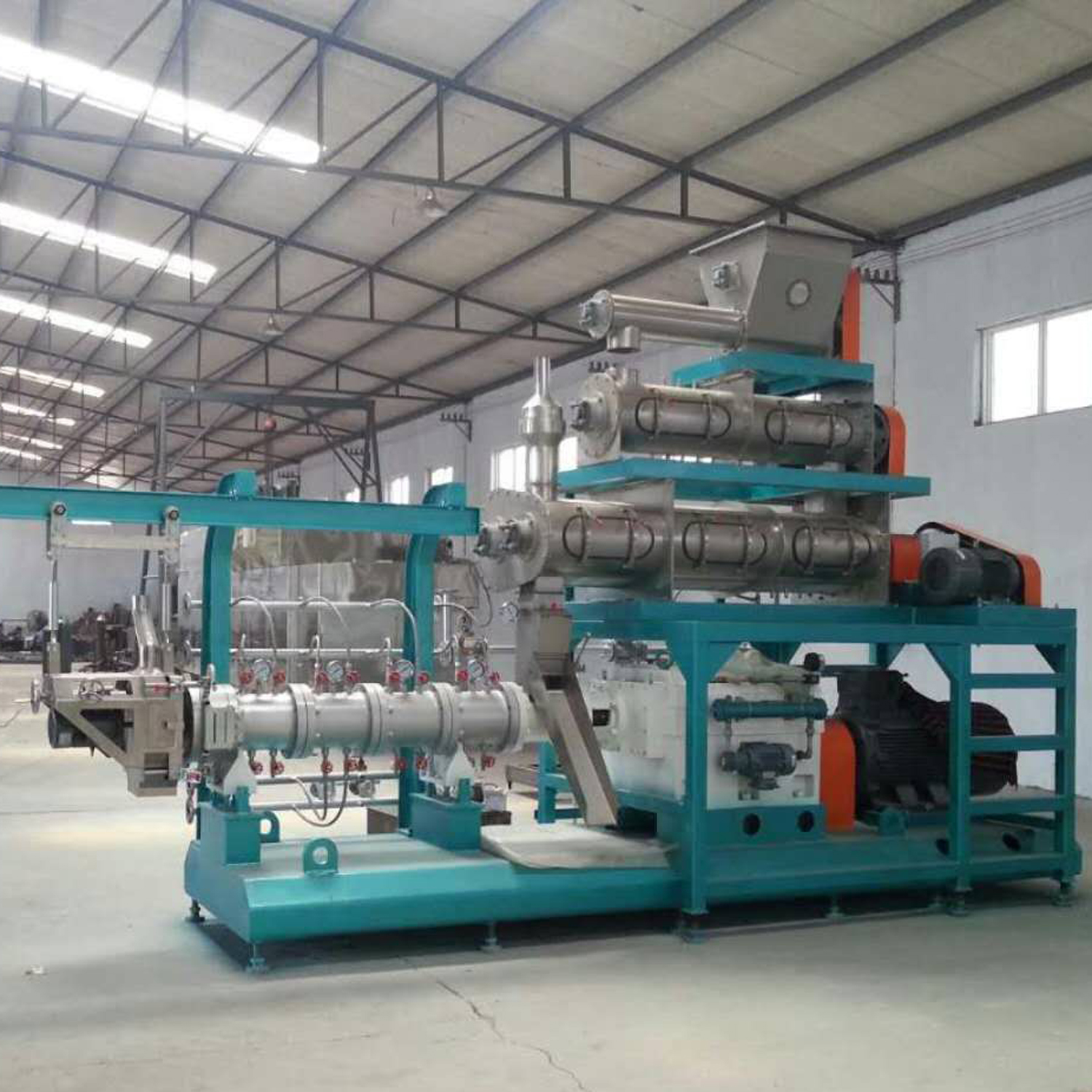

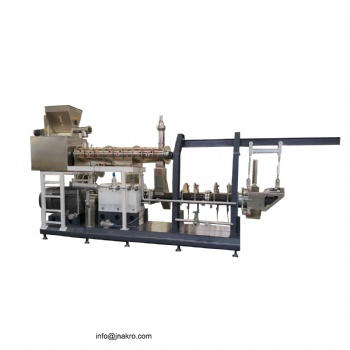

Double screw extruder machine
Double screw extruder machine is also named double screw extruder machine, which is widly used in puff snacks, fry snacks, bake snacks, core filling snacks, corn chips, bugles snacks, soy chuck, artificial rice, bread crumbs, modified starch and so on.
But different snacks products needs different extruder machine and different other matched machines. AVAN double screw extruder machine is used good quality spare parts China brand and other famous brand. Some spare parts are made by our factories, and some is from other parts suppliers. The spare parts which are buy from local suppliers are Inverter, gear box, screw, barrel, relay, motor.
The advantage of double screw machine is high capacity and stable producing. Our company supplies the machine operating training, the basic formula, and other questions in products processing.
Different type of twin screw extruder.
Model | AVN65 | AVN70 | AVN75 | AVN85 | AVN95 | AVN100 | AVN120 |
Screw Dia' | 65MM | 70MM | 72MM | 80MM | 92MM | 100MM | 120MM |
Screw Length | 1140MM | 1410MM | 2100MM | 1850MM | 2200MM | 2500MM | 2700MM |
Number of screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Main Motor | 22KW | 37KW | 55KW | 75KW | 110KW | 150KW | 180KW |
Heater | 15KW | 15KW | 18KW | 20KW | 24KW | 30KW | 30KW |
Capacity | 150KG/H | 200KG/H | 300KG/H | 500KG/H | 1200KG/H | 2000KG/H | 4000KG/H |
Weight | 1200KG | 1500KG | 2100KG | 2500KG | 2800KG | 3000KG | 3200KG |
Dimension | 3500*1100* 1850MM | 3500*1100* 2000MM | 5000*1200* 2000MM | 4300*1200* 2000MM | 5000*1200* 3500MM | 7100*1200* 3500MM | 7800*1200* 3500MM |
Double screw extruder machine line

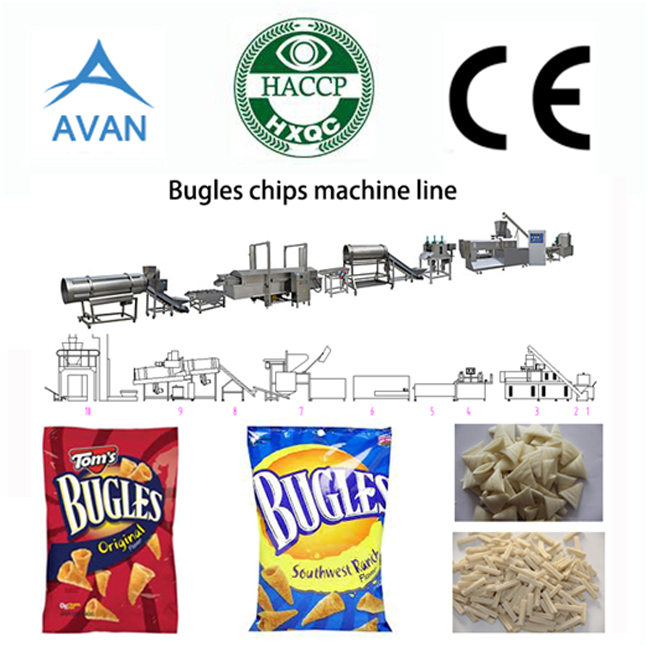

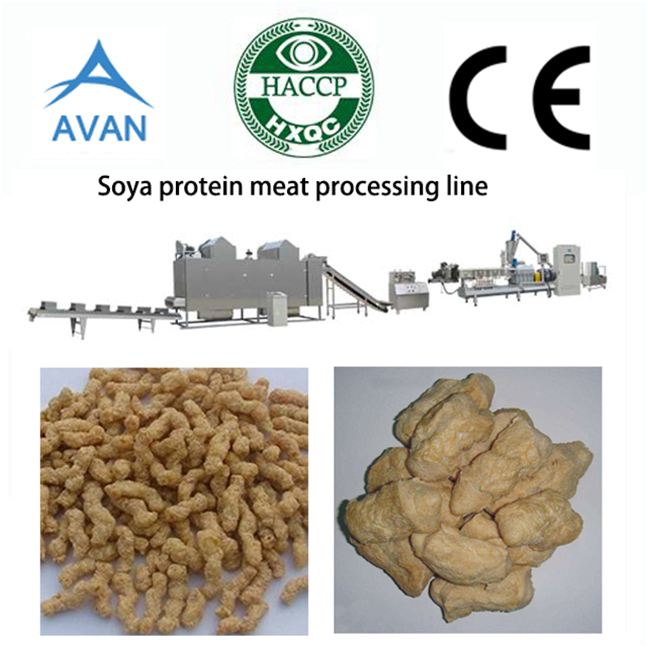

Animal fish dog feed machine line Puff snacks machineline Corn chips doritos machine line Soya protein machine line
The guide of twin screw extruder machine
The following is the guide on puff snacks double screw extruder machine. Introduce the different extruder product producing, and increase the efficency.

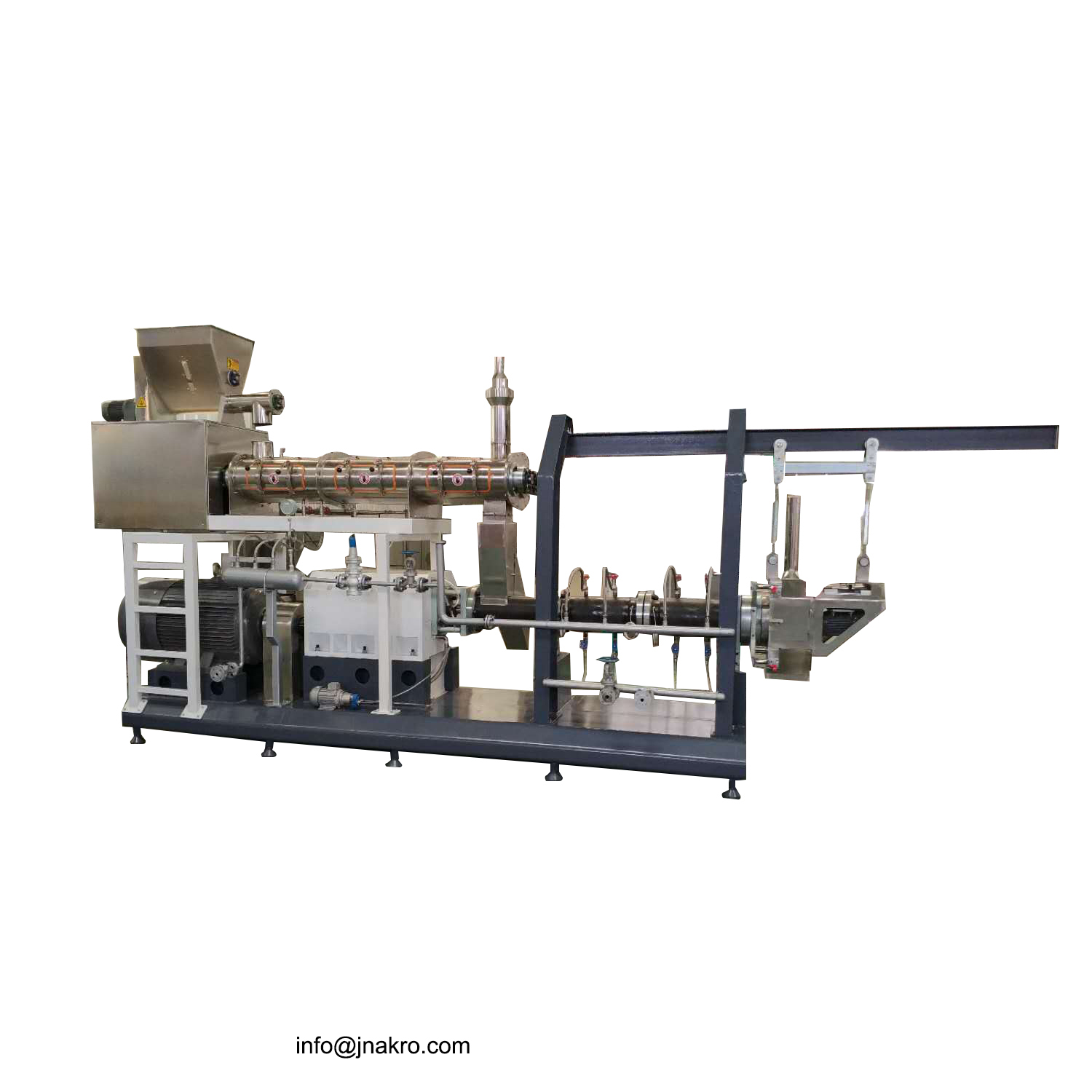

What is the double screw extruder machine?
As there are two contrarotation screw inside the barrel, so it is called twin screw or double screw. The extruder machine could be seperated in several parts, like control system, feeder system, oil lubrication system, products cut system. Motor and distribution system. Barrel and screw. Last the frame and stainless steel cover. Also some products needs to control the temperature, the water cooling system is added.
Why choose the twin screw extruder to produce the snacks?
1. The twin screw extruder machine is multi-function. The moulds chould be changed to produce different shape products.
Like the fish feed products, as different age fish needs different diameter fish feed, the extruder could products different size products with the moulds.
And also the puff snacks, different shape puff snacks will interested in customers.
2. The twin screw extruder machine is easy to operate.
Normally, 2-4 workers could operate the whole machine line including the extruder machine.
3. Twin screw extruder machine is stable on capacity and long working time.
Most customers produce products 16-20 hours one day, and 6 days one week. The important is the distribution box connected with motor. As it is easy to broken.
We suggest to purchase one distributor in store together with machines.
4. Twin screw extruder machine is high in capacity. Please check the up information on capacity.
Spare parts on twin screw extruder machine.
The main motor is SIMENS brand. Like 22 kw, 37kw, 55kw, 75kw and so on.

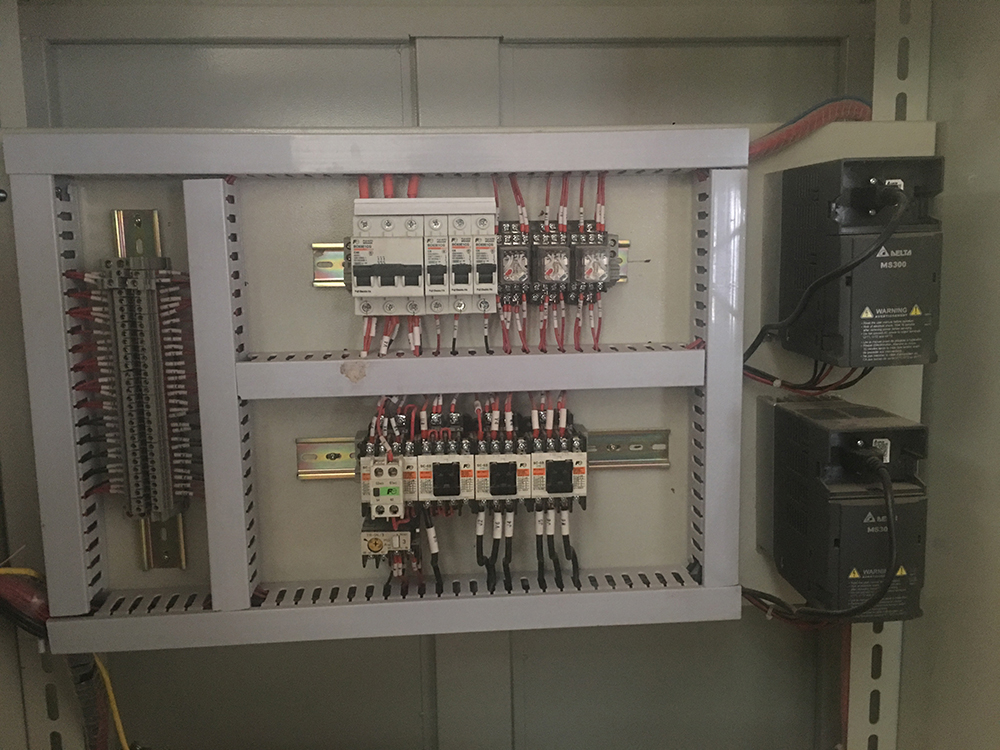

Inverter is from Delta brand. Other electricity spare parts are from ABB, Schneider, Ormon and so on.
The distribution box is improved from Straight teeth gear to helical teeth gear. Get more durable.
Screw is nitriding processing.
Welcome contact us if the extruder project is on doing. Avan Machinery will supply good machines for you.
