Automatic Pet Food Extrusion Machine

    Function: Dog food, fish feed, dog treat, cat food, bird feed.
    Capacity:120-150kg/hour, 200-250kg/hour, 500-600kg/hour,1000-1200kg/hour,2000kg/hour.
    Voltage: 380V 50Hz
    Pellet size:1.5-10mm
    Pellet shape: Bone, Ball, Heat and so on.
    Model: AVN65, AVN70, AVN85,AVN95, AVN100.
    Category: PET FEED MACHINE, DOG FOOD MACHINE, FISH FEED MACHINE
    Brand: AVAN MACHINERY
    Price: USD9000 to USD35000 PER SET.
    Gurantee time: 12 months.
    Supply Ability: 25 SETS PER MONTHLY
    Payment Method: T/T,L/C, Western Union, Money Gram, Paypal.
DETAILS

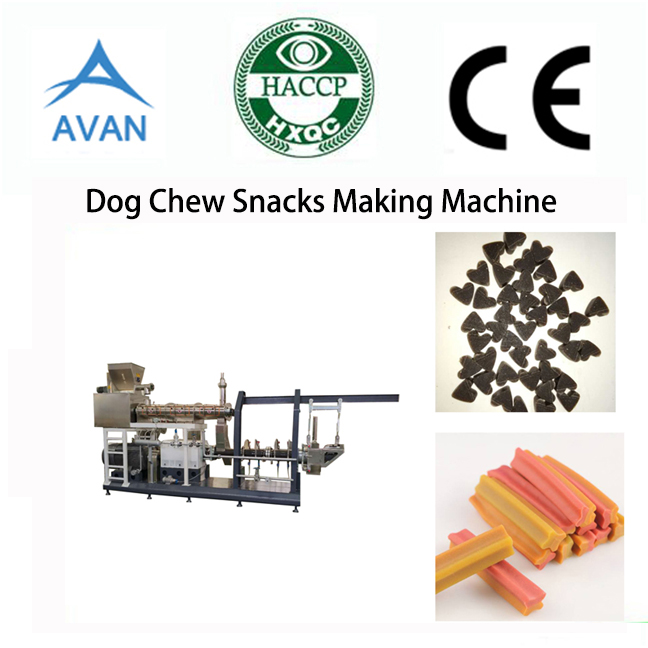

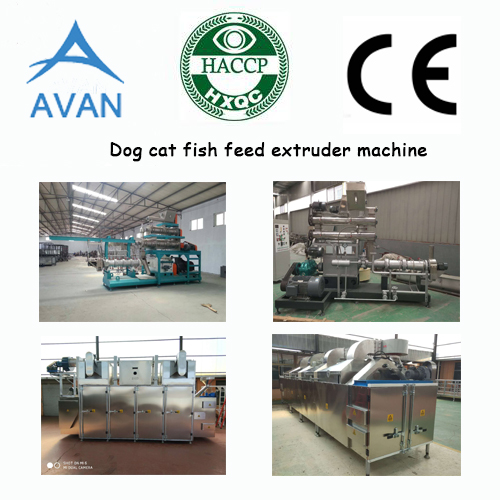

Automatic Pet Food Extrusion Machine

Machine introduction.

Now the feed market is get bigger and bigger, the feed business is a good choice. The pet food extrusion machine is a professional equipment on producing pet food, animal feed, bird feed, cat feed, fish feed and so on. The pet food extrusion machine is high in capacity, high in efficiency, suits on farm, small factory, large factory and so on. As professional machines for feed, the extrusion could produce different products with different moulds.

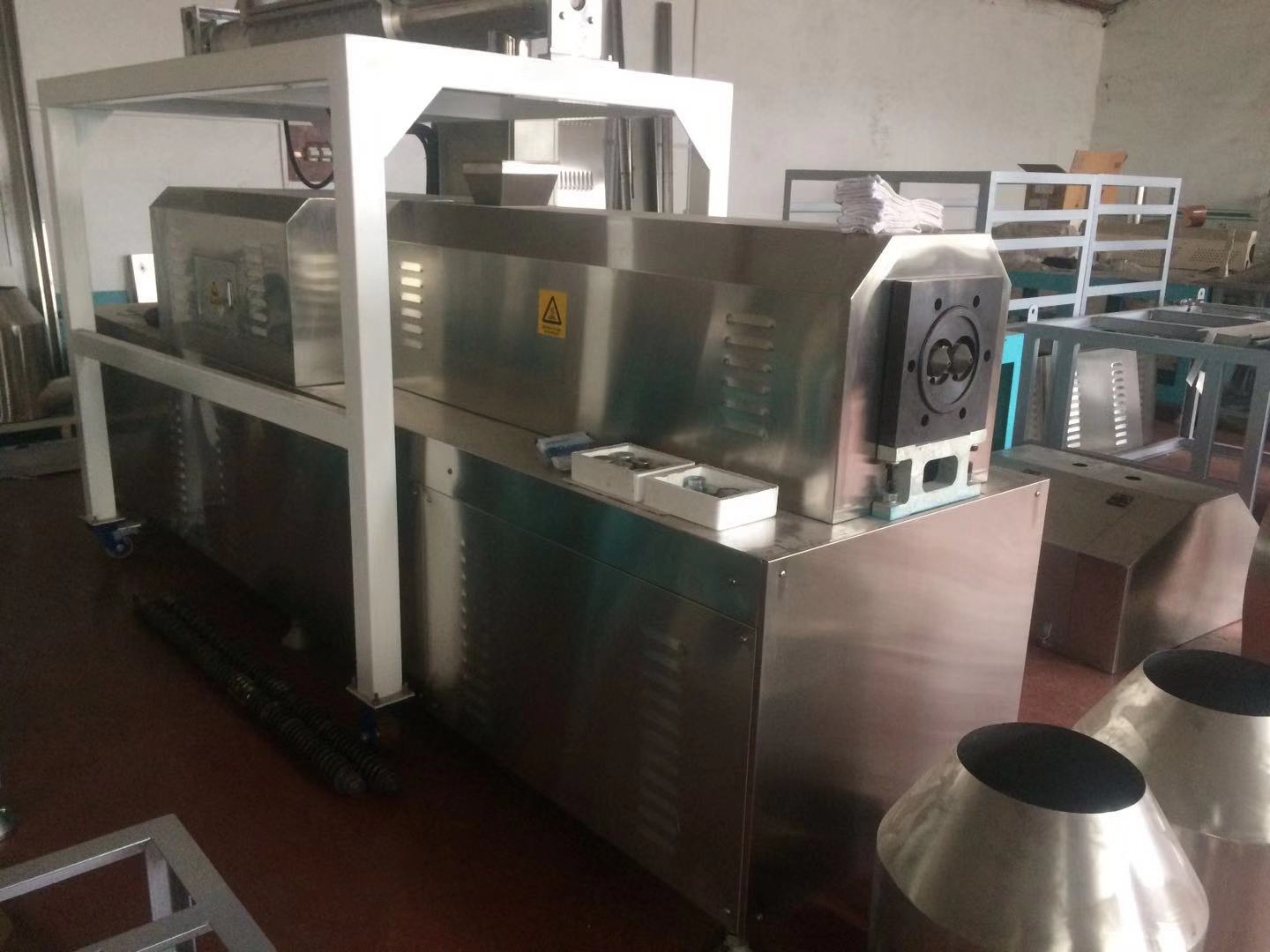

extrusion .jpg

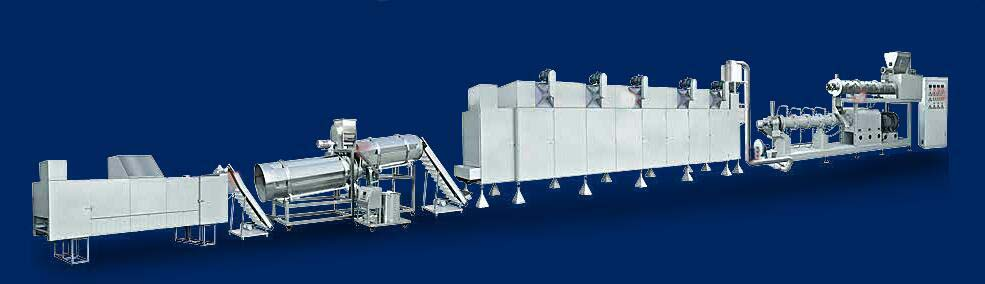

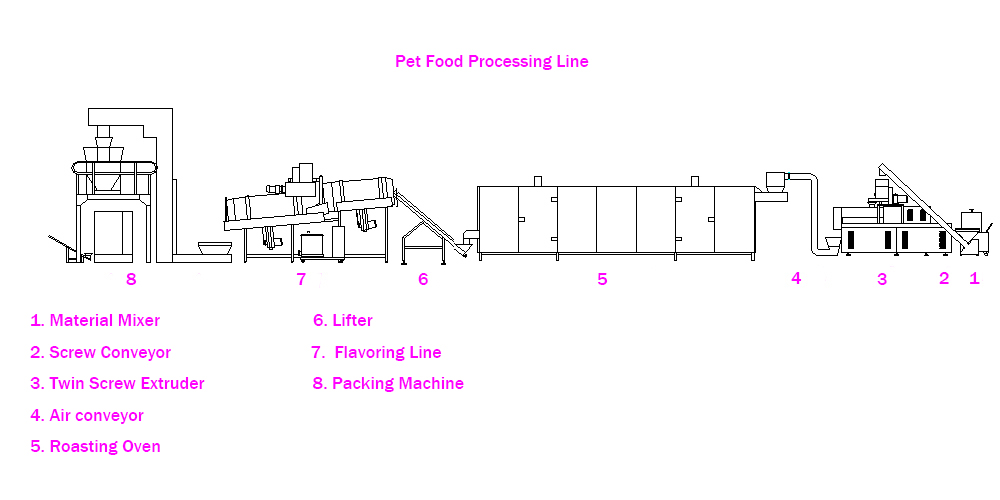

Pet food extrusion machine line flow cart.

pet food machine line.jpg

Mixer machine-- Screw conveyor machine---Double screw extrusion machine--Air conveyor/belt conveyor---Dryer roasting machine--Lefter--Flavoring machine--Packing machine.

pet food line.png

Pet food pictures.

fish feed.jpg

animal feed.jpg

The capacity of pet food extrusion machine.

Model
AVN65
AVN70AVN75AVN85AVN95AVN100AVN120
Screw Dia'
65MM
70MM
72MM
80MM
92MM
100MM
120MM
Screw Length1140MM
1410MM
2100MM
1850MM
2200MM
2500MM
2700MM
Number of screw2
2
2
2
2
2
2
Main Motor
22KW
37KW55KW75KW110KW150KW180KW
Heater
15KW
15KW18KW
20KW
24KW
30KW
30KW
Capacity
150KG/H
200KG/H300KG/H500KG/H1200KG/H2000KG/H4000KG/H
Weight
1200KG
1500KG
2100KG
2500KG
2800KG
3000KG
3200KG

Dimension

3500*1100*

1850MM

3500*1100*

2000MM

5000*1200*

2000MM

4300*1200*

2000MM

5000*1200*

3500MM

7100*1200*

3500MM

7800*1200*

3500MM

Pet food machine advantage.

  1.  Pet food extrusion machine is multi-function. It could produce different products with different moulds.

  2.  Pet food extrusion machine materials is food grade stainless steel. Frame is carbon steel.

  3.  Pet food extrusion machine is easy to operate, working automaticly.

  4.  Pet food extrusion machine capacity is high.

  5.  Pet food extrusion machine could produce low cost animal feed.

  6.  Different formula could be used on machines to make high competitiveness pet food.

  7.  Our company supply good after sale service, engineer is available oversea to install and teach operating.

  8.  Pet food extrusion machine has 12 month guarantee time and low price spare parts all over the machine working life.
